Quartz pendulum module is the key component of quartz flexible accelerometer to measure acceleration by sensing inertial force. It is made of an integral quartz pendulum piece, with a force generator coil glued on both sides of the center of the swing piece and a flexible head as the swing axis, forming a moving part of the force generator. Its lead is led out by the gold plated lead of the quartz pendulum piece through the quartz flexible head. The coil of force generator is composed of aluminum alloy skeleton and enamelled wire wound in the skeleton.
모든 제품

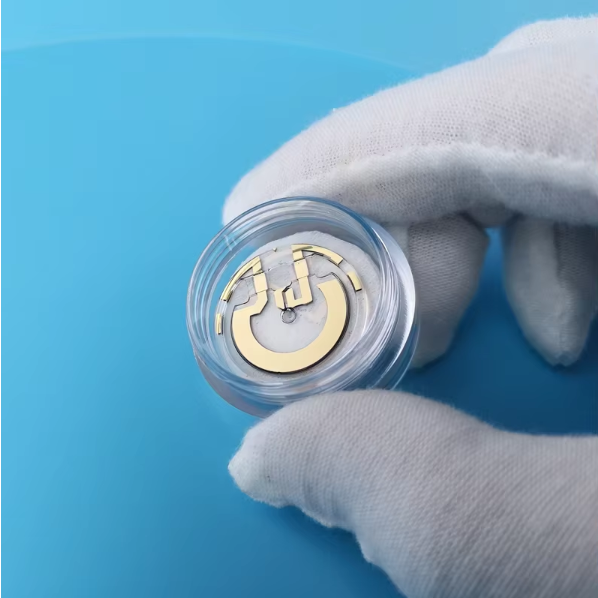

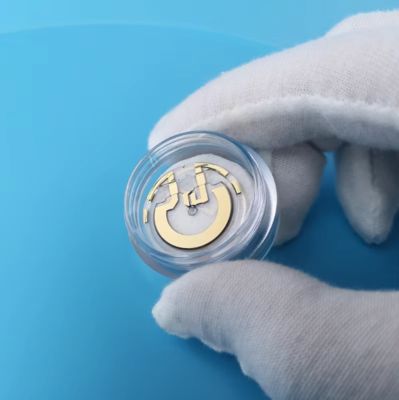

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
| 원래 장소 | 중국 산동 |
|---|---|
| 브랜드 이름 | ZKTD |
| 인증 | ISO 9001:2008, Rohs |
| 모델 번호 | ZKTD-PO12 |
| 최소 주문 수량 | 5 개 PC |
| 가격 | USD 48/Pieces |
| 포장 세부 사항 | 상자, 나무 상자, 진주면. |
| 배달 시간 | 14 근무일 |
| 지불 조건 | l/c, t/t |
| 공급 능력 | 100000 조각/월 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 강조하다 | flexible beam quartz pendulum,gold coated quartz pendulum,high reflection quartz glass |
||
|---|---|---|---|
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
제품 설명
Product Description
Specification
| Item | Value |
| Brand Name | ZKTD |
| Application | Sensor, Inertial Navigation, instrument |
| Shape | Round |
| Chemical Composition | 99.999% fused silica |
| Product Name | Flexible Beam Quartz Pendulum |
| Color | Clear Transparent |
| Parallelism | <2um |
| Flatness | <0.6um |
| Surface Roughness Ra | <1nm |
| Thickness Error Of Flexible Beam | <1um |

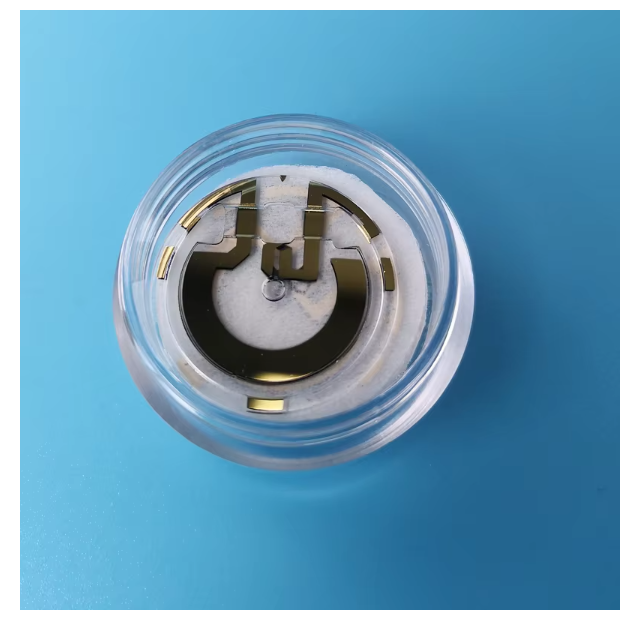

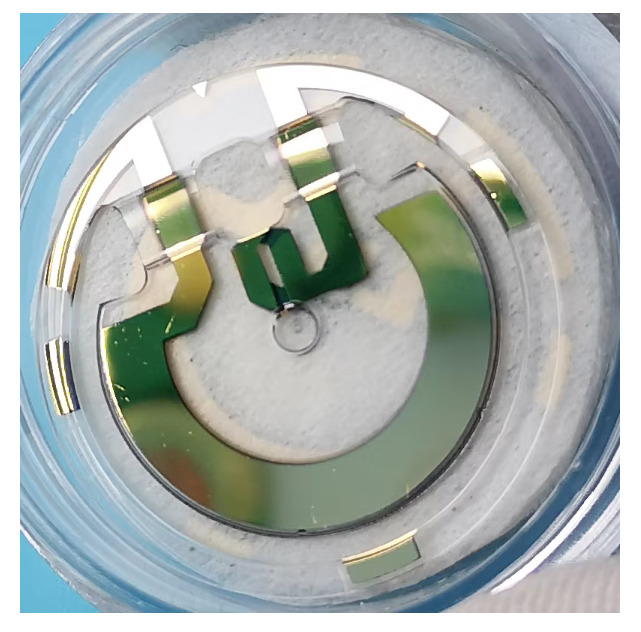

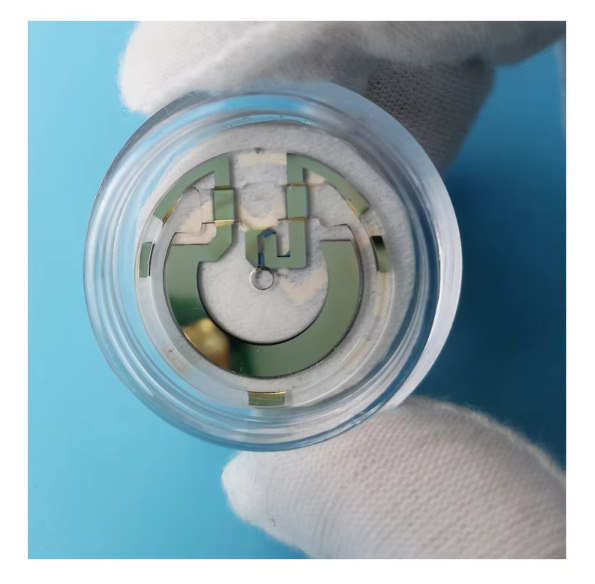

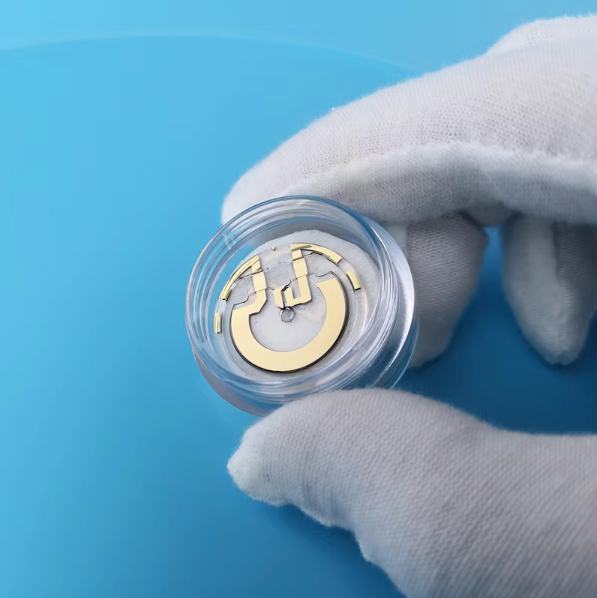

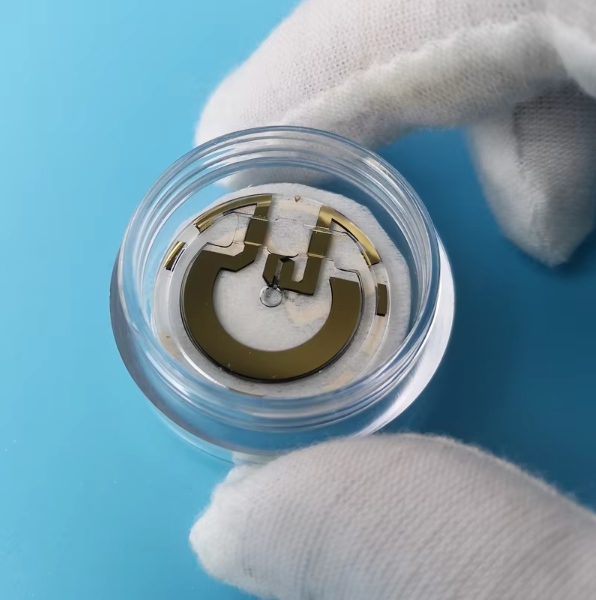

Flexible Beam Quartz Pendulum For Inertial Navigation
Company Profile
Yantai ZK Optics Co., Ltd., is a high-tech comprehensive glass processing enterprise integrating R&D, production and sales. The
product sales have been spread all over the world, and are trusted by users in Asia, Europe, the United states, South Korea and
India. It has established a high-quality product image and brand in the field of glass deep processing.
product sales have been spread all over the world, and are trusted by users in Asia, Europe, the United states, South Korea and
India. It has established a high-quality product image and brand in the field of glass deep processing.
Certificate
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
